起源の場所:
中国
ブランド名:
OEM
モデル番号:
ML1220 CR1220 3V リチウムコイン電池

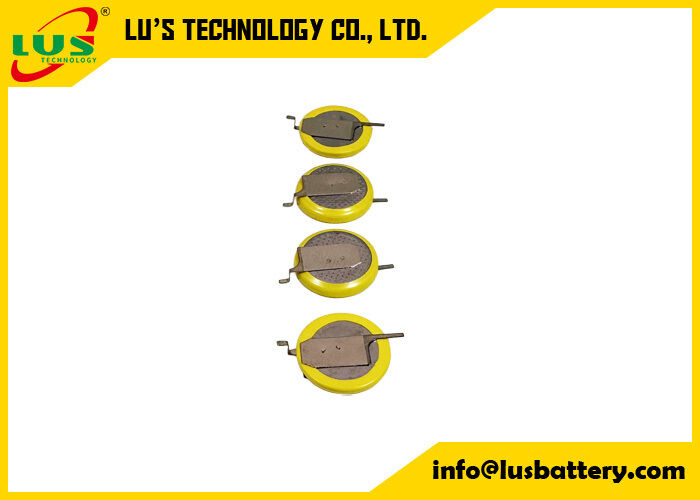

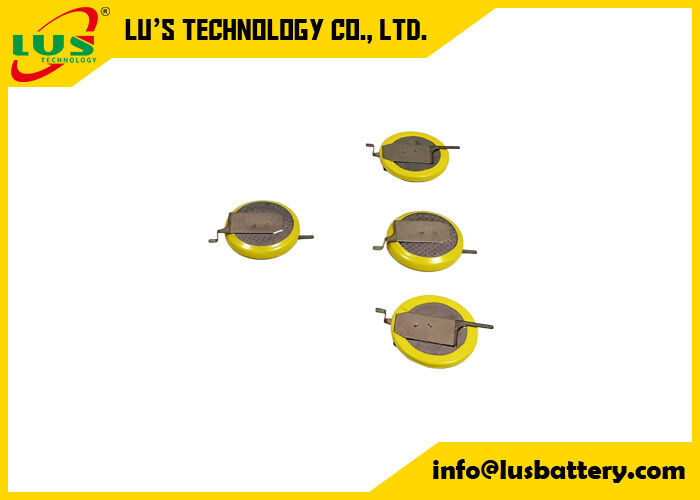

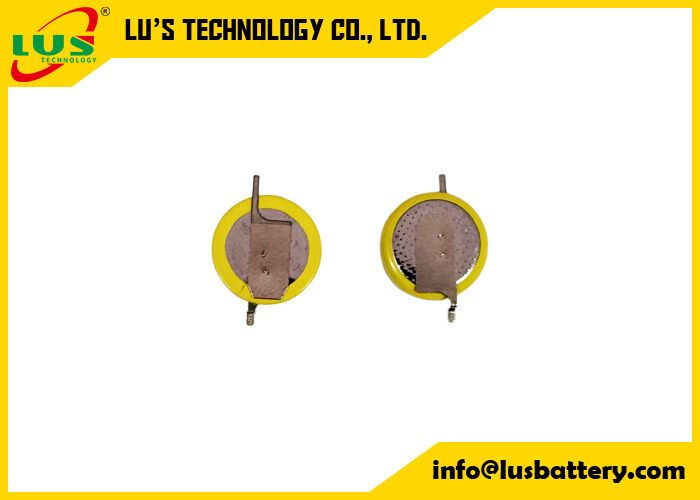

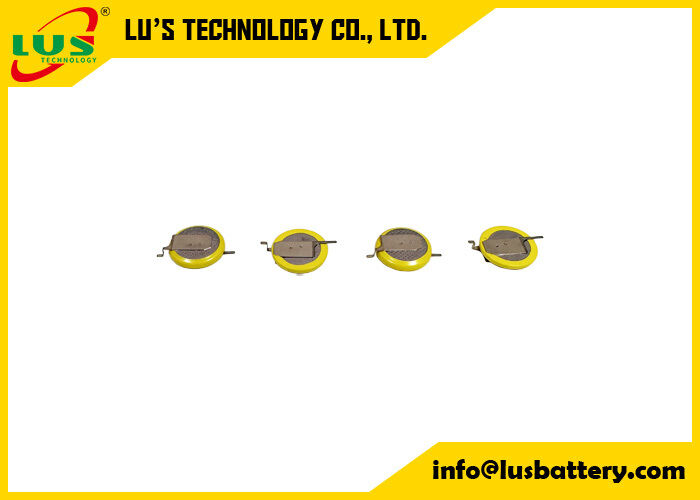

Cion type rechargeable lithium battery ML1220 3V rechargeable battery 18mah cion cell battery ML1220 batteris
Custom Battery Pack ML1220 CMOS Backup Battery 3V lithium battery 3 Volts Li-ion battery ML1220 Rechargeable CMOS Battery with Solder Tabs
Button Battery ML1220 Coin battery ML 1220 Rechargeable 3V battery ML1220 BIOS Backup Batteries ML1220 rechargeable lithium ion batteries 3V lithium battery 1220VL series rechargeable batteries 3v 18 mAh RECHARGEABLE LITHIUM Replacement Battery ML1220 batttery Replacement for RLITH-1-2 Battery ML1220-HJ1 limno2 battery
ML1220 3V rechargeable lithium manganese dioxide button cell battery commonly used for CMOS/BIOS memory backup in laptops
ML1220/FCN Lithium Rechargeable battery ML1220 Industrial Cell Button Battery 3V 18mah cion battery 100% compatible with Panaso nic ML1220-WR equipment
ML1220 3 volt Rechargeable Coin Cell battery ML1220 high-performance rechargeable button battery that delivers superior cycle life compared to traditional CR1220 batteries.
| CLASSIFICATION | MANGANESE DIOXIDE LITHIUM RECHARGEABLE BATTERY |
| BATTERY SYSTEM | COIN TYPE MANGANESE DIOXIDE LITHIUM BATTERY |
| BATTERY TYPE | ML1220 |
| NOMINAL VOLTAGE | 3.0V |
| NOMINAL CAPACITY | 18mAh (ON CONTINUOUS DISCHARGE UNDER 30kΩ load to 2.0V end-point) |
| STANDARD DISCHARGE CURRENT | 0.1mA |
| MASS | APPROX. 0.85g |
| SIZE | Φ12.5(+0/-0.3)mm 2.0(+0/-0.2)mm |
| USABLE TEMPERATURE RANGE | -20ºC~+70ºC |
| STORAGE TEMPERATURE RANGE | 0ºC~30ºC |
| STORAGE HUMIDITY RANGE | 35%~75% |
ML1220 Battery can be come with Cable and Connector ML1220 disposable button-type lithium battery
This small rechargeable ML1220 battery is commonly used in
electronic devices
such as notebook and laptop computers, PDAs, tablet PCs, digital cameras
and communications equipment.
It is commonly used as a backup clock battery in many timer equipped home electronics
devices.
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Max. Discharge Current (mA) | Resistance (mΩ) | Diameter (mm) | Height (mm) | Weight Approx (g) |
| LIR1025 | 3.6 | 6±2 | 1C | 10.0 -0.15 | 2.5 +0.15 | 1.1±0.2 | |
| LIR1220 | 3.6 | 8±2 | 1C | 12.5 -0.2 | 2.0 +0.35 | 0.8±0.3 | |
| LIR1254 | 3.6 | 65±5 | 1C | ≤600 | 12.0 -0.2 | 5.4 +0.2 | 1.8±0.2 |
| LIR1620 | 3.6 | 16±2 | 1C | ≤2000 | 16.0 -0.2 | 2.0 +0.35 | 1.2±0.3 |
| LIR1632 | 3.6 | 25±2 | 1C | ≤2000 | 16.0 -0.2 | 3.2 +0.35 | 1.7±0.3 |
| LIR1654 | 3.6 | 120±5 | 1C | ≤600 | 16.0 -0.2 | 5.4 +0.2 | 2.4±0.2 |
| LIR2016 | 3.6 | 18±2 | 2C | ≤2000 | 20.0 -0.2 | 1.6 +0.35 | 1.7±0.3 |
| LIR2025 | 3.6 | 25±5 | 2C | ≤2000 | 20.0 -0.2 | 2.5 +0.25 | 2.3±0.3 |
| LIR2032 | 3.6 | 40±5 | 2C | ≤600 | 20.0 -0.2 | 3.2 +0.35 | 2.8±0.3 |
| LIR2050 | 3.6 | 80±5 | 2C | ≤600 | 20.0 -0.2 | 5.0 +0.2 | 3.8±0.2 |
| LIR2430 | 3.6 | 60±5 | 2C | ≤500 | 24.5 -0.2 | 3.0 +0.35 | 3.8±0.3 |
| LIR2450 | 3.6 | 120±10 | 2C | ≤450 | 24.5 -0.2 | 5.0 +0.35 | 5.0±0.3 |
| LIR2477 | 3.6 | 180±10 | 2C | ≤400 | 24.5 -0.2 | 7.7 +0.3 | 7.0±0.3 |
Coin Cell Batteries ML1220 lithium and rechargeable battery 3V lithium alloy coin cell batteries 3.0VOLT BR series battery ML1220 battery custom
